PAINT COMPLEX

      Painting complex 3M015.00.00.00 is designed for applying and drying water-soluble enamels on TV cases and housings with their continuous movement during the drying process. The complex can be used for painting other products with overall dimensions not exceeding those specified in the technical specifications. The complex includes a drying tunnel, a painting booth and a transportation conveyor.

      Specifications:

Maximum dimensions of parts to be painted, mm	length 800 width 600 height 420
Number of jobs for painters, pcs	3
Type of conveyor movement	continuous
Conveyor speed, m/min	0.4...2.4
Distance between pallets, m	1.2
Type of coolant	electric heating by heating elements with air recirculation
Drying temperature, ºC	30...60
Number of temperature control zones	7
Climatic conditions in the spray booth	air temperature, 19...21ºC humidity, 60...70%

Granulator 3L 099.00.00.00.00

      The granulator is intended for processing crushed fractions of plastics (including polystyrene) obtained by grinding gating systems, defective body parts, and so on, in order to obtain granules of the same shape and size, suitable for recycling when casting on injection molding machines.
      The granulator is designed for operation in industrial premises of the category.

      Specifications:

Productivity (for polystyrene), kg/h	80…90
Working volume of the extruder screw, cm3	2820
Extruder screw diameter, mm	100
Water bath volume, l	420
Fresh water consumption, no more than, m3/hour	0.2
Compressed air consumption, m3/hour	45
Installed electric power, kW	130
Overall dimensions, mm	length 8600 width 1300 height 2180
Weight no more than, kg	4400
Power supply from a three-phase AC network	voltage (220±22)/(380±38) V frequency (50 ± 1) Hz

Crusher of plastic ingots (polystyrene)

      The crusher is designed for recycling waste from the production of thermoplastic plastics in the form of ingots.

      Specifications:

Material crushed by crusher	Polystyrene
Productivity, not less than, kg/h	100
Dimensions of the loading neck, mm	height 150 width 590
Rotor speed, rpm	900
Number of blocks with knives in the rotor, pcs.	4
Number of knives in a block, pcs.	5
Rotor diameter along blade edges, mm	348
Number of fixed knives, pcs	2
Size of holes in the calibration grid, mm	10
Power consumption, no more than, kW	37
Overall dimensions, mm	length 2200 width 1100 height 2140
Weight no more than, kg	2 100
Power supply from a three-phase AC network	voltage (220±22)/(380±38) V frequency (50 ± 1) Hz

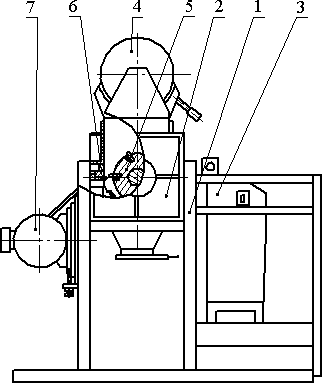

1. Bed
2. Case
3. Remote control
4. Loading drum
5. Knife rotor
6. Fixed knife
7. Electric motor

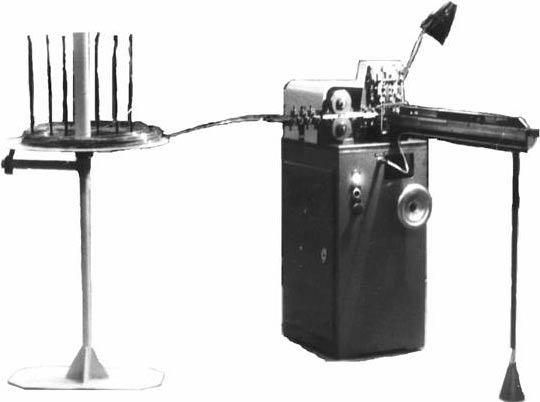

MAPI STAPLE MAKING MACHINE 1.000.000.

      The machine for making staples is designed for the production of U-shaped staples (clips) used for fastening the casing of sausages.

      Specifications:

Productivity, pcs/h	4000
Clip material used	wire AD0, AD1, D18
Wire diameter, mm	2,5…3
Clip dimensions, mm	length 9…15 height 10…14
Power supply from a three-phase AC network, V	380±38
Power of the electric motor, kW	0.75
Overall dimensions, mm	length 1320 width 755 height 1190

A set of equipment for testing household electrical equipment in accordance with GOST 12.2.006-87 4I033.00.00

Item No.	Designation	Description	Item No. according to GOST
1	4И 033.01.00	Antenna test plug	1.2.5
2	4И 033.02.00	Test pin Ø 4 mm.	9.1.3
3	4И 033.02.00-01	Test pin Ø 2 mm.	9.1.5
4	4И 033.03.00	Calibration screwdriver	1.7.1
5	4И 033.02.00-01	Calibration screwdriver	1.7.1
6	4И 033.04.00	Articulated test finger	9.1.1
7	4И 033.05.00	Hard test finger	9.1.1
8	4И 033.06.00	Standard test pin	9.1.4
9	4И 033.07.00	Installing test devices that make up part of the network connector	1.5.4
10	4И 033.08.00	Dynamometer 50 N
11	4И 033.09.00	Test Hammer	12.1.3
12	4И 033.10.00	Torque test fixture	12.2
13	4И 033.11.00	Test hook	8.2
14	4И 033.12.00	Test needle	9.3.6
15	4И 033.13.00	Dynamometer 20 N

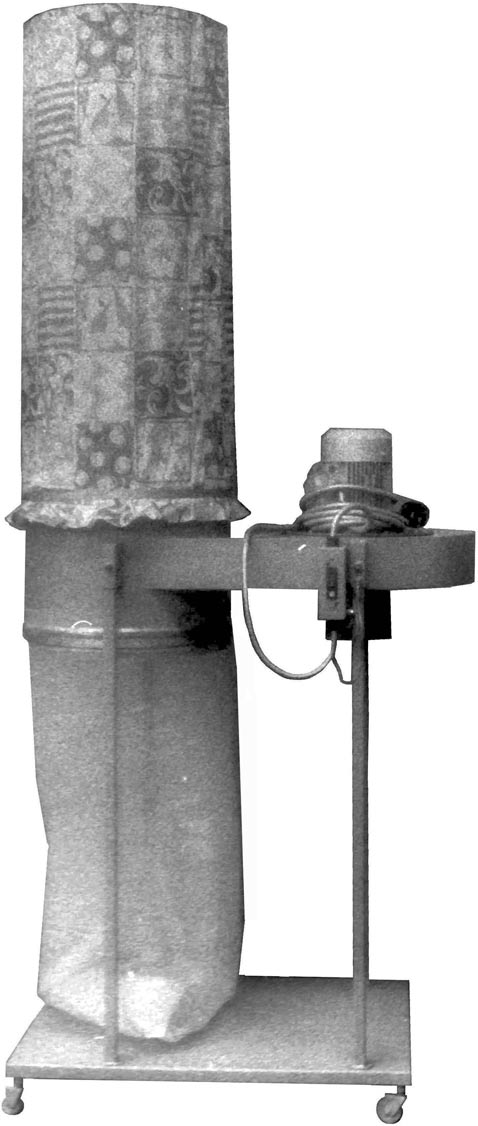

Schip blower 1Р747.00.00.00

      The device is designed to remove wood waste in the woodworking industry.

      TECHNICAL DATA:

Air suction capacity, m3/hour	1900
Inlet diameter, mm	160
Fan wheel diameter, mm	330
Connecting pipe diameter, mm	160
Power supply from a three-phase AC network,	380±38V 50 Hz
Power of the electric motor, kW	1.5
Overall dimensions, mm	length 1110 width 750 height 2480
Mass, no more than, kg	110

RECTIFIER UNIT

      The rectifier unit is designed to power electroplating baths and equipment for electrochemical metal processing. A distinctive feature of this unit compared to similar thyristor-type rectifier units is the low level of output voltage and current ripples, which can significantly improve the quality of the coating, as well as reduce the consumption of materials used for coating.
      The unit has effective protection against overload, short circuit, overheating, insulation breakdown. The package includes a remote control that can be moved up to 50 meters from the unit.
     The unit has 3 operating modes:
          - current stabilization mode;
          - current density stabilization mode;
          - voltage stabilization mode.

      MAIN SPECIFICATIONS:

Overall dimensions, mm - length 800 - width 500 - height 1500 7. Weight, kg, no more than 200

Output voltage regulation range, V	1…6
Output current regulation range, A	25…315
Ripple factor of output voltage and current, no more than	0,1
Auto stabilization accuracy, %     - rectified voltage and current     - current density	± 5 ± 10
Voltage of the supply 3-phase network, V	220/380 ± 10%
Overall dimensions, mm	length 800 width 500 height 1500
Weight no more than, kg	200

1. Woodworking equipment:

• drilling and welding machines;
• assembly clamps;
• machines for making furniture brackets;
• Paint and glue booths
• chip blowers.

2. Electroplating equipment:

• special straighteners;
• stationary galvanic baths, including those with electric heating;
• mobile galvanic baths, including those with electric heating;
• galvanic lines.

3. Conveyors and conveyor systems:

• conveyors for assembling electronic assemblies;
• conveyors for assembling and adjusting TVs;
• lifts and load transfer devices;
• belt conveyors for various purposes;
• overhead chain conveyors.

4. Equipment for the production of printed circuit boards:

• semi-automatic screen printing;
• semi-automatic screen printing;
• IR drying lines;
• UV drying lines;
• tinning lines.

5. Equipment for the preparation of radio elements, installation and assembly of radio electronic components:

• soldering lines;
• automatic, semi-automatic and manual presses for molding radioelements;
• pneumatic screwdrivers, including those with calibrated torque;
• tinning jobs;
• automatic and semi-automatic winding machines for frame and frameless coils;
• equipment for preparing wires for installation.

6. Equipment for plastics processing, including:

• choppers;
• faucets;
• bulk loaders;
• bunker for storing and drying material;
• granulators;
• separators;

7. Test equipment for testing various types of consumer goods and industrial products:

• A set of equipment for testing household electrical equipment in accordance with GOST 12.2.006-87 4I033.00.00;
• A set of tests for moisture resistance of household appliances according to GOST 27570-87 4I037.00.00.00;
• Bend test bench for cable cords according to GOST 12182.1-80 4I026.00.00.00;
• Installation for testing power cords for bending in accordance with GOST 27580-87 4I021.00.00.00;
• Furniture test stand 4I046.00.00.00;
• Equipment and fixtures for testing paving slabs according to STB10-71.

8. Painting equipment;

• Painting lines;
• Paint booths;
• Paint preparation tanks

9. Transport, storage and transport equipment:

• lifts and load transfer devices;
• Transport trolleys for various purposes;
• Special trolleys.

10. Organization equipment for various purposes:

• Shelving;
• Cabinets, including fume hoods;
• Tables for fitters and adjusters, and others.

11. Information input-output devices:

• Input-output devices for CNC machines;

12. Equipment for the meat processing industry:

• Automatic machines for making clips for packing sausages;
• Clippers for packing sausages.

13. Original products for leisure and leisure:

• Smokers are different;
• Barbecues;
• Folding slingshots for a fire;
• Shower cabins;
• Skewer;
• Swings are different.

14. Electrical products:

• Timers;

You may also be interested in special offers and other divisions of our service.

You are always welcome:

8-(10-375-212)-26-57-32 http://www.vityas.com/enterprise/oma/ scope/

Address:	210605, Vitebsk, st. P. Brovki, 13A
Telephone:
Email:	nz_oma@tut.by
URL:

The fleet of equipment that the production of the Mechanization and Automation Service has at its disposal includes:

1. machines of the turning group (16K20, IZH250, 1M63, 1IS611)
2. machines of the milling group (67K25, AG400, GF2171, 6T83, 6P82, 6T10, 6G453)
3. machines of the gear group (5К32)
4. grooving machines (7А420)
5. grinding group machines (3E711, 3M151, 3K227, 3U10, 3E180, 3U133, 3D711, 3L722, 32K83)
6. drilling group machines (2M112, 2L53, 2N125, 2N135, 2N106, 2E440, 2431SF1012A614)
7. Jig boring machines (BKOZ900)
8. guillotine shears (NK3418)
9. bending machines, sheet bending rolls, pipe bender (HOM2000, IV2142, DMV991)
10. press (1GND2, RN-M100, N4518, KD2322, P6328)
11. roller shears, hacksaw, abrasive cutting machine
12. welding equipment.

Production forces carry out a wide range of work

• on mechanical processing of materials,
• welding of materials in an inert gas environment, electric arc welding, contact welding. Welding aluminum and stainless steel.
• Cutting blanks on crank shears. Plasma cutting of materials and cutting of materials on an abrasive cutting machine.
• Electrical installation of printed circuit boards of any level of complexity, volumetric installation of block stands, etc. are carried out.
• Production of harnesses and various cable products.

Device for input-output of programs to CNC equipment

      Designed for input-output of programs to CNC equipment using modern storage media instead of traditional punched tape, replacement of photoreaders (FSU) and perforators.

      In the minimum configuration, the device is a structurally complete BLOCK FS / PL, connected to the CNC equipment instead of the FSU and puncher and carrying out the input-output of programs from a conventional floppy disk (GMD) of the MS-DOS format with a capacity of 1.44 MB. Equipment with CNC DOES NOT REQUIRE MODIFICATION of software or hardware, since the interface of the FS/PL BLOCK fully corresponds to the replaced FSU and perforator.

      In the extended version, several (up to 12 inclusive) FS/PL UNITS can be connected via the MULTIPLEXER UNIT to one RS-232 port of the PC. And the input-output of programs can be carried out not only from the GMD, but also directly from the PC. This is useful for manufacturing sites that use a significant number of CNC equipment. The interface used provides galvanic isolation of CNC equipment from each other and from the PC.

Main technical characteristics:

1. The maximum amount of programs is not more than 32 kb;
2. Type of perforator to be replaced - PL 150M;
3. The type of FSU to be replaced depends on the version of the FS/PL BLOCK. Currently, versions are being manufactured that replace the following types of FSU:

• FS 1501 ( variant A/P ) ;
• FS 1501 ( variant B/P ) ;
• CONSUL 337.601 AM .

4. When working with the GMD, the contents of the root directory of the GMD are viewed and the required program is selected.
5. The design of the FS/PL UNIT allows it to be installed both vertically and horizontally, which makes it easier to place it on CNC equipment.
6. Supply voltage - 220 V, 50 Hz.

Loose materials loader

      Loose materials loader 1L057.00.00.00 is designed to feed plastic material in granules from various containers into supply hoppers of injection molding machines in the production of plastic products.
      It can also be used in other industries for feeding granular materials.
      The loader consists of a fan with an electric motor, a control panel, an air filter mounted on a frame, and a hopper with a dosing device, which is installed on the supply hopper of the equipment.
      It can be used to complete injection molding machines of any capacity.

Specifications:

       1. Productivity, kg/h 300
       2. Power consumption, kW 1.7

Magnetic separator

The separator is intended for separating magnetic metal trimmings from the crushed material flow after crushing defective products in the recycling of plastics.
The separator is built into any crushed material supply system before granulation or directly by casting on an injection molding machine.
The high separation efficiency is ensured due to the complete overlap of the flowing transport section with the fields of blocks of permanent magnets arranged in multilayer.
The shape and dimensions of the separator are determined by the specific section and type of pipeline. For example, it might look like this:

Equipment and fixtures for testing paving slabs according to STB10-71

Item No.	Type of tests, name of equipment	Equipment parameters (item ND)	Where required (p.ND method)	Note
BENDING COMPRESSION AND STRETCH
1	Bending Tensile Testing Device	STB 1152-99	GOST 10180-90 P.5.3.1	4I078.10.00.00
2	steel plates	STB1152-99	GOST 10180-90 P.5.3.1	4I078.03.00.00; -01
3	Device for measuring deviations from flatness of samples ± 0.01 mm per 100 mm	GOST10180-90	GOST10180-90 P.4.7	4I078.02.00.00
4	Device for measuring deviations from perpendicularity of samples ± 0.01 mm per 100 mm	GOST10180-90	GOST 10180-90 P.4.6	4I078.01.00.00
FROST RESISTANCE
5	Baths for thawing samples with a device for maintaining the temperature (18±2)ºС of NaCl solution 5%		STB 1152-99 p.5.4, GOST10060.2-95 P.4.8, GOST10060.0-95	3I079.00.00.00
6	mesh container	GOST10060.1-95 p.4.5	GOST10060.1-95 p.4.5	3I078.06.00.00
7	Rack for storage of baths with samples in NaCl solution 5%		GOST10060.1-95 p.4.6	3I080.00.00.00
8	Tanks 90x90x110 : 120x120x140mm (for 100mm cubes)		GOST10060.2-95 p.4.9	3I078.07.00.00: -01
9	Sieve for quartz sand with holes 0.315 mm		GOST28570-90 p.4.8, appendix p.p.3,4.	3I078.04.00.00: -01
WATER ABSORPTION
10	baking sheets		GOST12730.3 p.4.4; GOST 12730.2 clause 2.1	3I078.11.00.00

ACOUSTIC TIMER

     PURPOSE:

      The acoustic timer (hereinafter TA) is designed for continuous round-the-clock operation in public places and other premises where lighting is required periodically for fixed periods of time.

      TECHNICAL DATA:

Mains voltage, V	210-240V
Network frequency, Hz	50
Minimum load power, VA (cos φ≥0.5)	25
Maximum load power, VA (cos φ≥0.5)	250
Working temperature, °С	+10...35 50 Hz
Overall dimensions (no more), mm	length 105 width 105 height 45
Weight, no more than, g	100
Case protection degree	IP 41
Protection class according to GOST 12.2.007.0-75	0

     DESIGN AND OPERATING PRINCIPLE:

      TA responds to noise effects with a frequency of 40 to 15000 Hz (door closing, footsteps, voice). In standby mode, the TA is at rest (the light is off), when sound vibrations occur, it turns on the lighting load and stays in this state for 60 ± 5 seconds, after which it automatically disconnects the load from the network. If sound vibrations occur during this period of time, the timer is reset and the countdown starts again. The functionality of conventional switches is preserved.

      CONNECT AND SETUP:

      Connection and adjustment of the TA must be carried out with a completely disconnected voltage.
      The TA is installed in any convenient place, sufficient to place the unit in close proximity to the lighting device on a flat, durable surface made of fireproof material. The position in space can be arbitrary.

     Mount the TA as follows:

          - install two dowels Ø6 or Ø8 mm in the required place (dowels are not included in the delivery set);
          - remove the cover;
          - fix the TA with screws, wrapping them in the installed dowels;
          - pass the power wires and wires going to the lamp through the free stuffing box *;
          - connect the wires to the TA terminals according to the diagram;
          - Close the TA cover.
      Inside the TA, the wires are connected with clamps according to the scheme:

      *It is possible to use the existing wires going to the luminaire by cutting them at the place where the SLT is installed. Since the connection is made by terminals mounted on flexible wires, it is not necessary to extend existing wires or lay additional ones.       After connecting the block, additional settings are not required. TA reacts to sounds in the volume of the room where it is installed.
